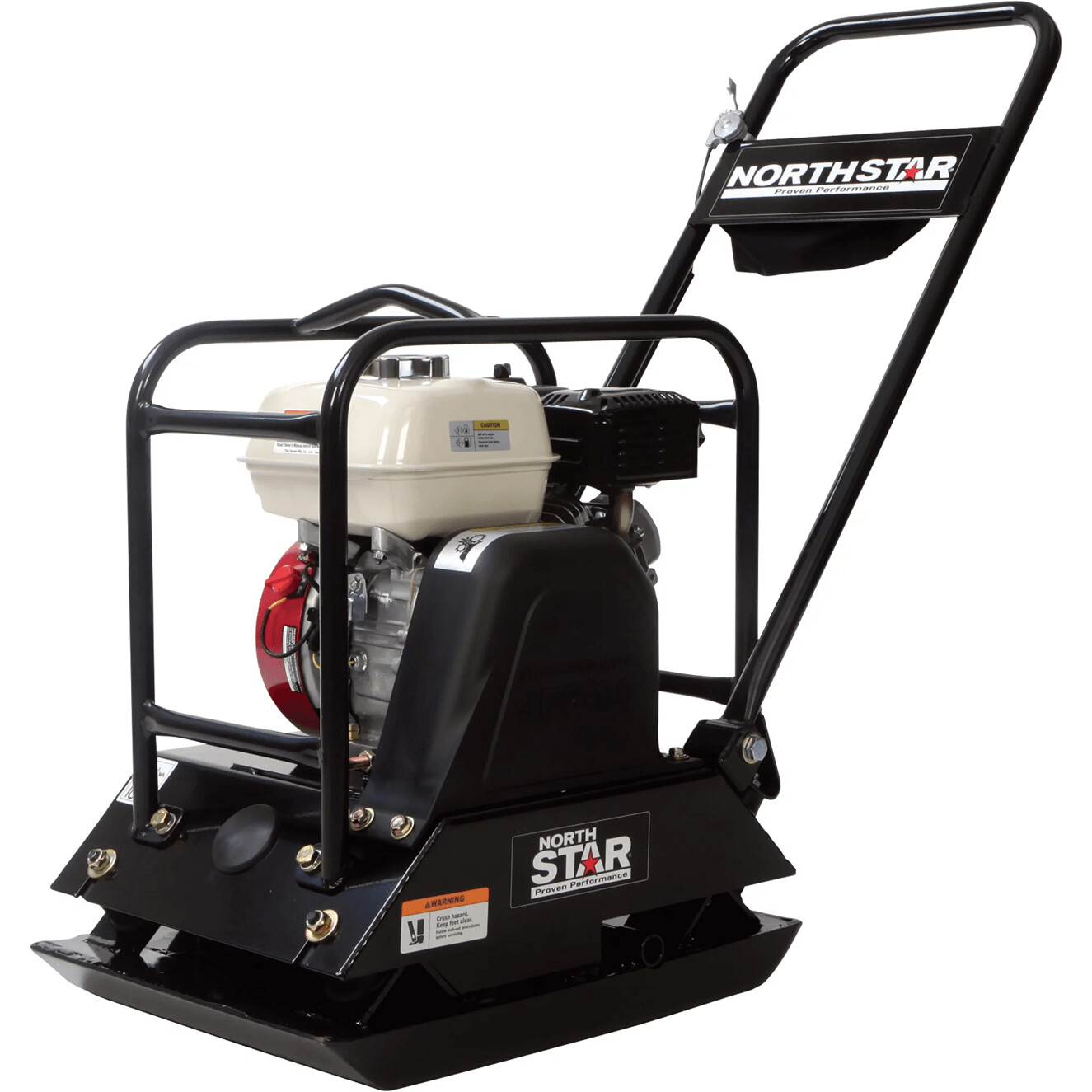

Compactor - North Star Single Direction

The NorthStar Single-Direction Plate Compactor is designed to compact granular soils and crushed aggregate. Quiet 163cc OHV Honda GX160 engine with high power and low fuel consumption powers the 21 1/2in. x 16 5/16in. compacting plate.

Engineered for Tough Jobs

• The NorthStar single-direction plate compactor is designed to compact granular soils and crushed aggregate up to 22in. deep
• Produces 3968 lbs. of compacting force to create a solid foundation for walkways, patios, landscaping, and more
• Operates at 6400 vibrations per minute to get the job done quickly
• Fast travel speed of 65-82 feet per minute helps to save time and energy

Designed To Last

• Heavy-duty shock mounts provide vibration isolation in the components and engine, preventing component wear and reducing operator fatigue
• Oil level for vibrating shaft (exciter) is easy to check

SPECS:

• HP 5.5
• Engine Type Honda GX160
• Plate Size L x W (in.) 21 1/2 x 16 5/16
• Compaction Force (lbs.) 3,968
• Vibrations Per Minute (VPM) 6,400
• Travel Speed (ft. per min.) 65–82
• Compaction Depth (in.) 22
• Overall Dimensions L x W x H (in.) 21 x 17 x 37
• Product Weight (lbs.) 210
